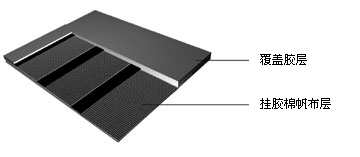

Fabric Conveyor Belts are Named According to Different Carcass: Cotton Conveyor Belt, Nylon Belt, EP Belt.
 |
COTTON BELT: suitable for middle/ short
distance conveying. |
 |
NN BELT: under condition of middle/ long
distance.heavy loading capacity, high speed,
strong lash and high vulnerability. |
 |
EP BELT:under condition of middle/long
distance,heavy loading capacity,high speed
conveying, good flexing capacity, troughable,
heat resistant,low lad elongation. |
 |
 |
High Temperature Resistant Belt |
Cold Resistant Belt | |
| 分层式织物芯输送带规格系列Multi-ply fabric belt specification |
| Belt Type |
Fabric Type |
(N/mm)Single Fabric Strength(N/mm) |
)Single Fabric Thickness(mm) |
Top Rubber Bottom Rubber |
Ply |
Width Range(mm) |
Length(m)Roll |
| Cotton Canvas Beit |
CC--56 |
56 |
1.10 |
3.0
4.5
6.0 |
1.5
3.0
6.0 |
3-12 |
300-2800 |
20-1000 |
| Nylon Belt |
NN100 |
100 |
0.70 |
2-10 |
300-2800 |
20-1000 |
| NN150 |
150 |
0.75 |
| NN200 |
200 |
0.90 |
| NN250 |
250 |
1.15 |
| NN300 |
300 |
1.25 |
| NN400 |
400 |
1.50 |
| EPBelt |
EP100 |
100 |
0.75 |
| EP150 |
150 |
0.85 |
2-8 |
300-2800 |
20-1000 |
| EP200 |
200 |
1.00 |
| EP250 |
250 |
1.20 |
| EP300 |
300 |
1.35 |
| EP350 |
350 |
1.50 |
| EP400 |
400 |
1.65 | | |
Widely Used in Mining,Harbour,Coal,Matallurgy,Chemical etc.Field for Conveying Materials. |
 |
Breed:Base on the rubber cover, the multi-ply conveyor belt can be clarified as follows :Normal Standard , Heat-resistant, Flame-retardant,
Abrasion-resistant,Normal fire-resistant,Static-transmission ,Acid-alkli resistant, Oil-resistant and Food type . |
Type |
Feature and application |
Conventional |
Generally used for powder,grain block material |
Oil/fat resistant |
Oil,fat material |
Acid&alkali resistant |
|
| Heat resistant |
T 1≤100℃， T2≤125℃ |
| temperature resistant |
T3≤150℃，T4≤180℃，Fire Resistant:200--600℃ |
| Flame retardant |
T3≤150℃,T4180℃,Fire Resistant:200--600℃ |
| Cold resistant |
|
| Abrasion resistant |
Anti-shock for shaped material
| | | |
